PETFILM2copy

WTEX-01

PET Protective Film : Anti-static ฟิล์มกันไฟฟ้าสถิตย์

คุณสมบัติ

  • ความสามารถในการป้องกันไฟฟ้าสถิตย์ได้ดีเยี่ยม
  • ผลิตในห้องเคลือบสะอาดคลาส 1000 ผลิตภัณฑ์มีความแข็งแรงในการยึดเกาะที่มั่นคงและทนต่อสภาพอากาศ
  • ความหนาและความแข็งแรงในการยึดเกาะสามารถปรับได้ตามความต้องการของลูกค้า
  • พื้นผิวเคลือบป้องกันไฟฟ้าสถิตมีให้ลูกค้าเลือกได้ตามต้องการตามสถานการณ์การใช้งานของตนเอง

การใช้งาน

  • เหมาะสำหรับกระบวนการผลิตและการป้องกันการขนส่งสำหรับโพลาไรเซอร์ TN/STN/TFT ฟิล์มกรองแสง และผลิตภัณฑ์จอแสดงผล

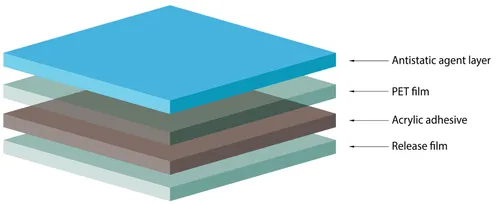

โครงสร้างผลิตภัณฑ์

SDK2-01

___________________________________________________________________________________________________________________________________

Features

  • Excellent antistatic ability
  • Made in Class 1000 clean coating rooms. Products have stable bonding strength and weather resistance
  • Thickness and bonding strength can be adjusted according to the customer's requirement;
  • The antistatic coating surface is available for customers to make special choices according to their own usage scenarios

Applications

  • Suitable for the manufacturing process and shipment protection for TN/STN/TFT polarizers, optical films, and display product

โครงสร้างผลิตภัณฑ์

SDK2-01

Typical product physical properties

Product number (P.N.)Adhesive typeBacking typeThickness (μm)Peeling force (gf/inch)Adhesive-Side impedance value (Ω/sq)Surface impedance (Ω/sq)Peeling voltage (KV)ColorSpecial property
W-TR-1001-H4P-E4PArylicPET115100~200/4~8/TransparentFilm resistance
WTX2282 ArylicPET603~69-11/<500TransparentGlue resistance
WTX2284L-E9ArylicPET693~13≤9≤9<500TransparentDouble resistance
WTX2395B-TPSiliconePET8520~25/6~9/BlueFilm resistance
WTX2392-DESiliconePET853~69~116~9<500Transparent/BlueDouble resistance
WTX2291FX-D3SiliconePET581-4/6-9/TransparentFilm resistance
W-TR-7501-LLLG Blue-DESiliconePET851~3.59-116-9<500BlueDouble resistance
WTX2K91X3 BlueSiliconePET841~3/<9/BlueFilm resistance
WTX2291S1-2SiliconePET601-3///Transparent/
WTX2282TPolyurethane (PU)PET603~68-11/<500TransparentGlue resistance
