PETFILM2copy

WTEX-01

PET Protective Film : General Non-residual ฟิล์มกันรอยไม่ทิ้งคราบ

คุณสมบัติ

  • สินค้าใช้ PET, P.P. ฯลฯ เป็นตัวพา เคลือบด้วย PSA
  • มีความสะอาดและความเรียบดี
  • สามารถพัฒนาได้ตามความต้องการใช้งานเฉพาะและตัวชี้วัดทางเทคนิคของลูกค้าโดยพิจารณาจากอะคริลิก ซิลิโคน และ P.U. กาว รวมถึงผลิตภัณฑ์ฟิล์มป้องกันต่างๆ ที่มีพาหะต่างกัน ความหนา ความแข็งแรงในการลอก สี และเงื่อนไขอื่นๆ

การใช้งาน

  • ผลิตภัณฑ์นี้เหมาะสำหรับการไดคัทในสายการผลิต การรองรับการปล่อยของเสีย การปกป้องผลิตภัณฑ์ และการป้องกันการขนส่งสำหรับผลิตภัณฑ์อิเล็กทรอนิกส์ เช่น โทรศัพท์มือถือ คอมพิวเตอร์ แผงสัมผัส

โครงสร้างผลิตภัณฑ์

SDK1-01

_____________________________________________________________________________________________________________________

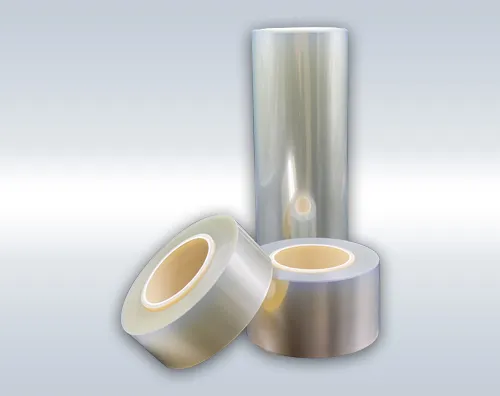

Features

  • The product uses PET, P.P., etc. as carrier, coated with PSA.;
  • Has good cleanliness and flatness;
  • It can be developed according to the specific application requirements and technical indicators of customers based on acrylic, silicone, and P.U. adhesive, including various protective film products with different carrier, thickness, peeling strength, color, and other conditions

Applications

  • The product is suitable for in-line die-cutting, waste discharge backing, product protection, and shipment protection for electronic products, such as mobile phones, computers, touch panels.

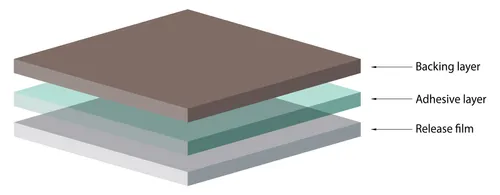

Product Structure

SDK1-01

Typical product physical properties

Product number (P.N.)Adhesive typeBacking typeBase material thickness (μm) Total thickness (μm)Peeling force (gf/inch)Color
WTXT0382HArylicPET38443~6Transparent
W-TR-5001-LLLPArylicPET50580.1~3Transparent
WTXT0502HArylicPET50583~6Transparent
WTXT0703HArylicPET70786~12Transparent
W-TR-1001-LArylicPET901056~12Transparent
W-TR-7501-LArylicPET70856~12Transparent / Blue
W-TR-5001-CPH2PArylicCPP507260~100Transparent
W-TR-7501-CPHPArylicCPP759030~60Transparent
WTX3209ArylicCPP506530-60Transparent
WTX2291CSiliconePET50600.1~3Transparent
WTX2392SiliconePET70803~6Transparent / Blue / Red
WTX2292SiliconePET50603~6 Transparent / Blue / Red
WTX2493SiliconePET901006~12Transparent
WTX2K92SFSiliconePET36463~6Transparent
WTX2191X2SiliconePET23514.4~7.6 / 740~1060Transparent
WTX2291TPolyurethane(PU)PET5065<3Transparent
WTX2281TPolyurethane(PU)PET5060<3Transparent
